Highlights
- 6.5 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
- Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.

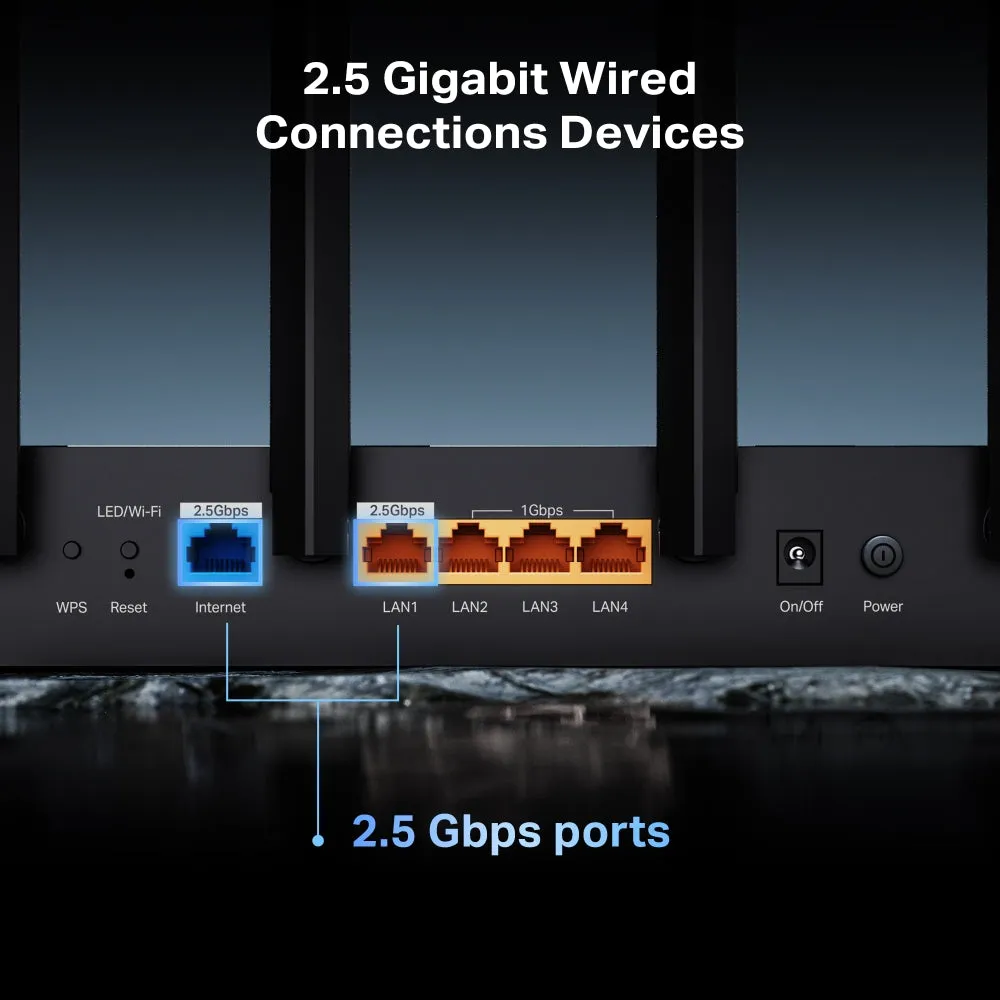

- 2.5G Wired Connection: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.

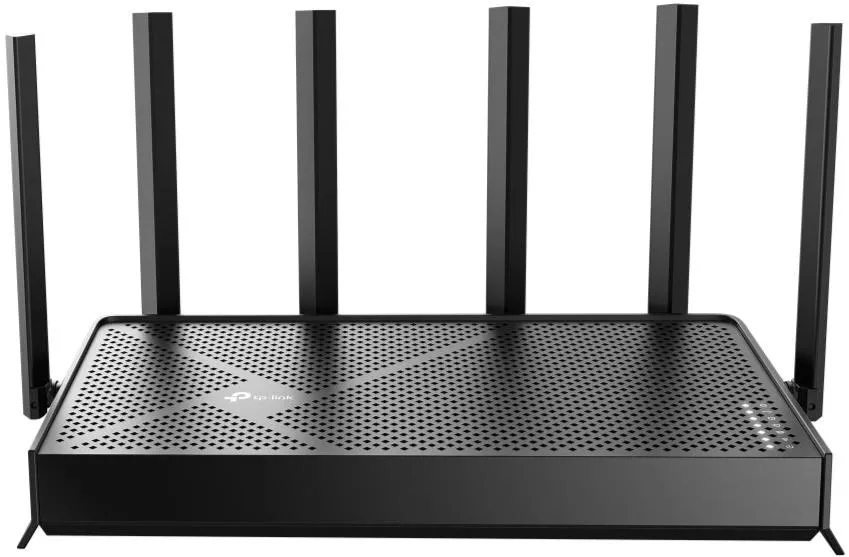

- Maximized Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- Easy Setup and Use: Network management has never been easier with the Tether app.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
- Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers
Product Description
Specifications
| WIRELESS | |
|---|---|
| WiFi Speeds | BE6500 • 5 GHz: 5764 Mbps • 2.4 GHz: 688 Mbps |
| WiFi Range |
3 Bedroom Houses 6× External Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth |
| Advanced Functions | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| Wireless Mode | • Router Mode • Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|

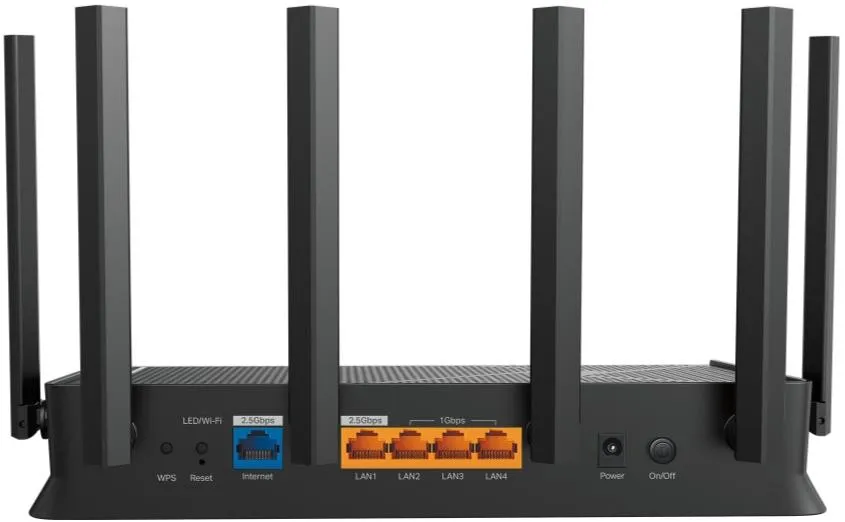

| Ethernet Ports | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
| USB Support | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS , FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power Button • Wi-Fi/LED Button • WPS Button • Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SOFTWARE | |
|---|---|
| Protocol | • IPv4 • IPv6 |
| Service Kit | HomeShield |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
