Highlights
- 3.6 Gbps Dual-Band WiFi 7: Keep your devices running at full speed. Enjoy smooth 4K/8K streaming, immersive AR/VR gaming, and ultra-fast download speeds.

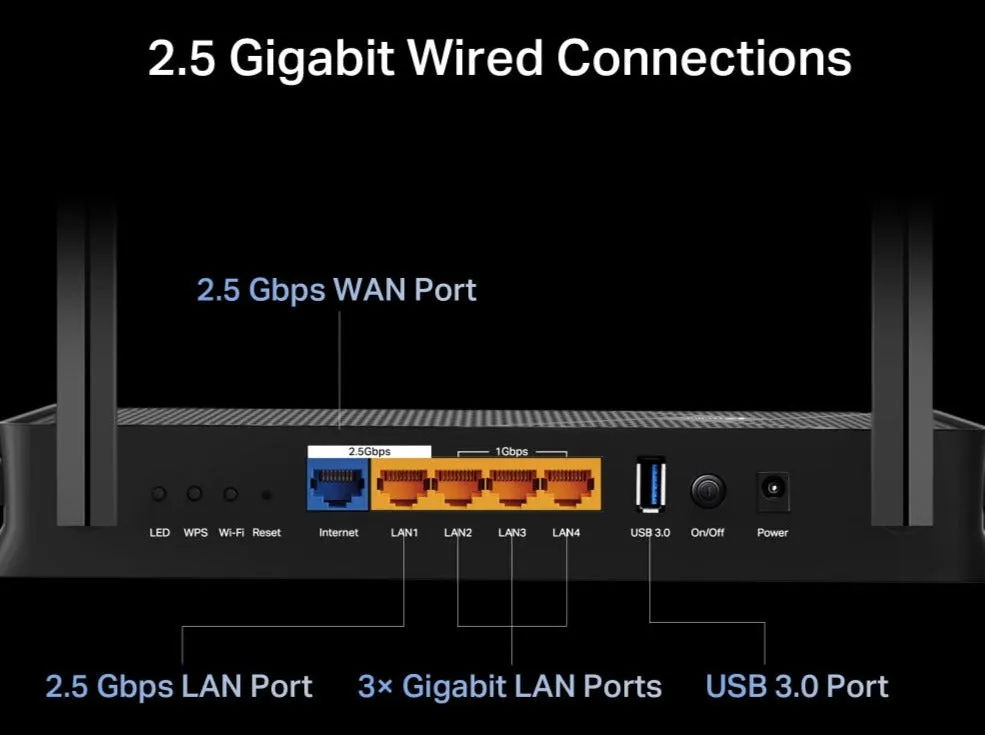

- 2× 2.5G ports: One 2.5 Gbps WAN port, one 2.5 Gbps LAN port and three 1 Gbps LAN ports provide high-speed data transmission.

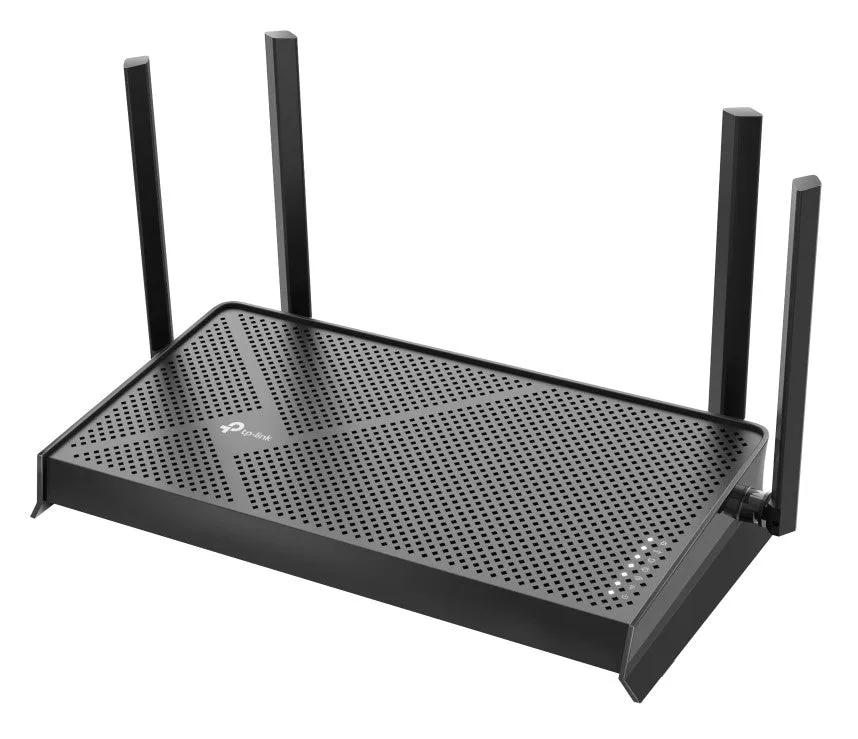

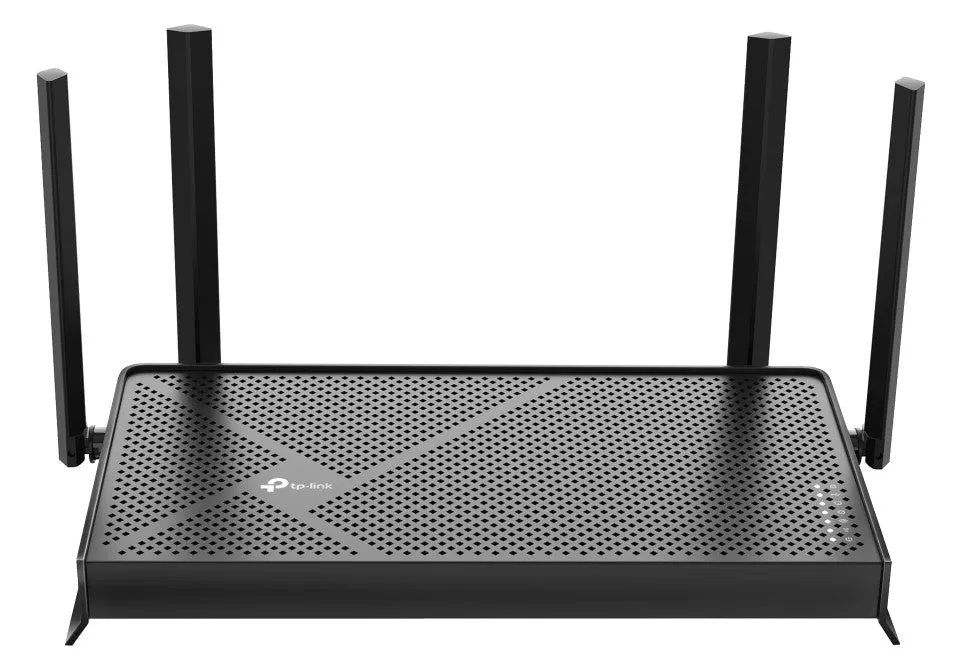

- Maximize range: 4× external antennas and beamforming technology provide greater capacity, stronger, more reliable connections, and less interference.
- EasyMesh-Compatible: Use with EasyMesh routers and signal extenders to form seamless mesh WiFi throughout the home to prevent packet loss and latency when moving between signals.
-
Simple installation and use: Network management becomes so simple through Tether App.
- TP-Link HomeShield: Enhanced security protects against the latest online threats.
-
Good compatibility: supports all Wi-Fi generations and devices** and all network operators.
Product Description
Specifications
| WIRELESS NETWORK | |
|---|---|
| Wi-Fi speed |
BE3600 • 5 GHz: 2882 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11ax) |
| Wi-Fi range |

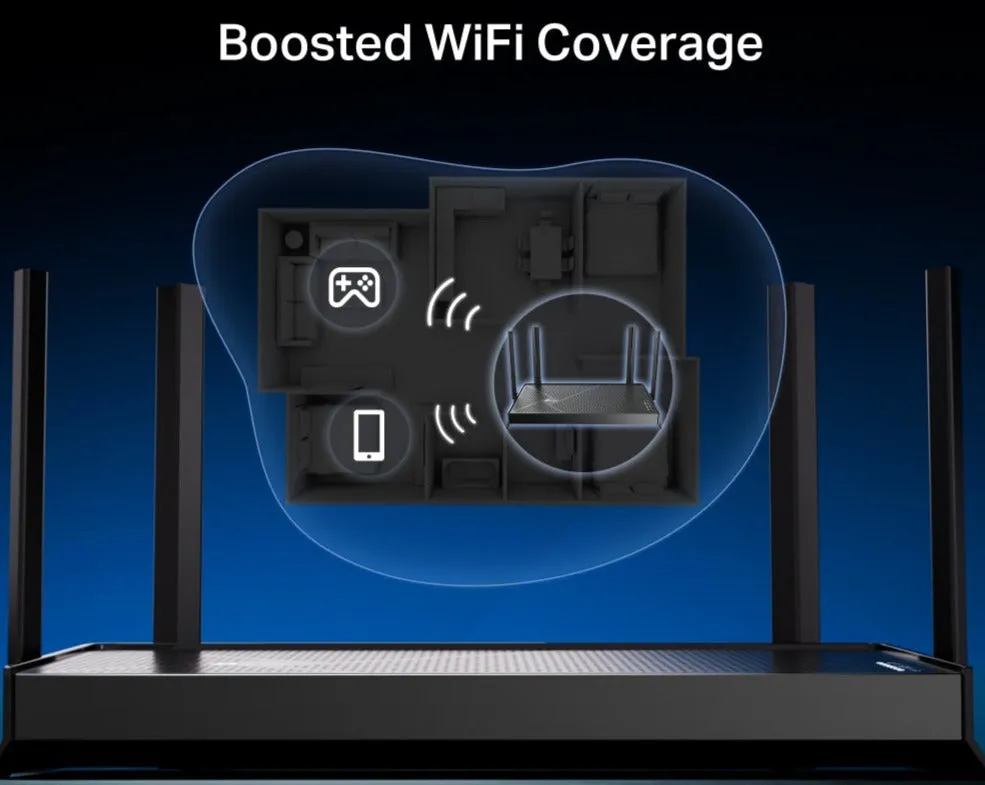

3 rooms 4× external antennas. Multiple antennas form a signal enhancement array to cover more directions. Large-area beamforming concentrates wireless signal strength on the client to expand WiFi range. High-power FEM increases transmit power to enhance signal coverage. |
| Wi-Fi capacity |
high Dual-band allocates devices to different frequency bands for optimal performance. 2×2 MU-MIMO transmits with multiple MU-MIMO clients simultaneously. OFDMA transmits with multiple clients simultaneously. Airtime Fairness (communication fairness) distributes time fairly, Limit over-occupancy to improve network efficiency DFS automatically expands available channels, reducing congestion and making available wider channels4 Streaming connects your devices to more bandwidth |
| Advanced functions |
• Multi-connectivity mode (MLO) • 4K-QAM • Multi-RUs • EasyMesh compatible • Works with Alexa and Google Assistant • IoT network |
| wireless mode |
• Router mode • Base station mode |
| SAFETY | |
|---|---|
| Internet security |
• SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Instant IoT Protection Malicious Website Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| guest network |
• 1× 5 GHz guest network • 1× 2.4 GHz guest network |
| VPN server |
• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN client |
• Open VPN client • PPTP VPN client • L2TP VPN client • WireGuard VPN client |
| Wi-Fi encryption |
• WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| HARDWARE SPECIFICATIONS | |
|---|---|
| network hole |

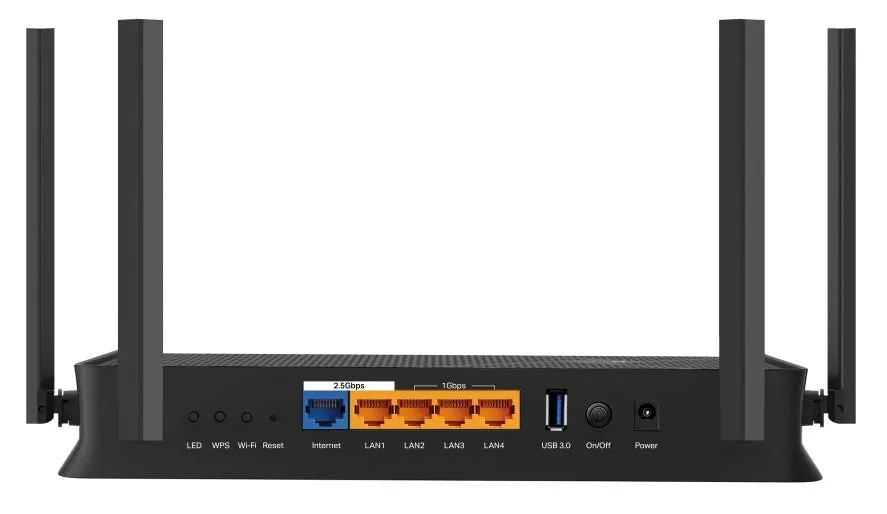

• 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
| Support USB |
1× USB 3.0 • Supported formats: NTFS, exFAT, HFS , FAT32 • Supported functions: FTP server Media server Samba server |
| button |
• Power on/off button • Wi-Fi on/off button • LED button • WPS button • Reset button |
| power supply | 12V⎓2A |
| SOFTWARE | |
|---|---|
| protocol |
• IPv4 • IPv6 |
| Service tools |
HomeShield |
| EasyMesh | Compatible with EasyMesh |
| Parental supervision |
HomeShield Parental Control Customized profile Professional content filter library Family time Bedtime Rest time Time rewards Family online time ranking Pause Online weekly and monthly reports |
| WAN type |
• Floating IP • Fixed IP • PPPoE • PPTP • L2TP |
| service quality | QoS by device |
| Cloud services |
• Automatic firmware upgrade • TP-Link ID • Dynamic domain name server |
| NAT forwarding |
• Port forwarding • Port triggering • DMZ • UPnP |
| IPTV |
• IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP |
• Address reservation • DHCP device list • Server |
| DDNS |
• TP-Link • NO-IP • DynDNS |
| manage |
• Tether App • Web management page |
| OTHER | |
|---|---|
| system requirement |
Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 or other JavaScript-enabled browser Cable or DSL modem (if required) Subscription to an ISP (for Internet access) |
| Certification | CE, FCC, RoHS, BSMI, NCC |
| environment |
Operating temperature: 0℃~40℃ (32℉~104℉) Operating humidity: 10%~90% non-condensing |
