PN /SS-CIP2220V-4W *

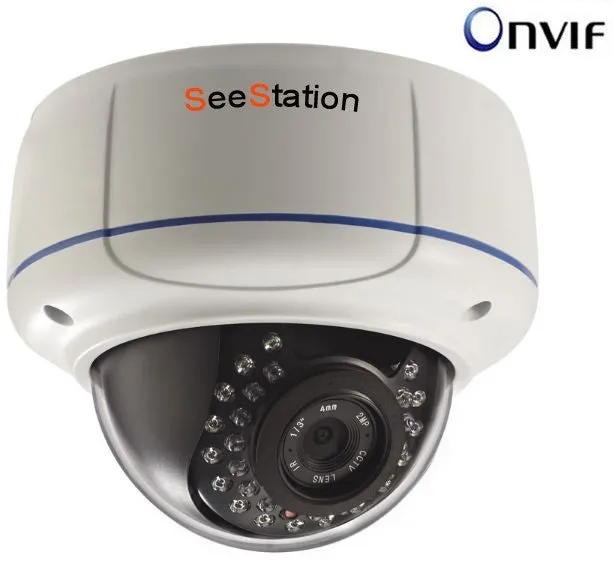

4MP IP Vandal Dome Camera "Built In POE"
- 1/3" CMOS OV 4689
- H.265
- 2592*1520@15fps
- 2.8-12mm varifocal HD lens with IR CUT
- 4.5" dome with cable concealed inside bracket
- 30PCS IR LEDs / 20M
- IP66
- white casing
- DC12V
|
Model No. |
SS-CIP2220V-4W |
|
System Structure |
Embedded RTOS,dual-core 32bit DSP(Hi3516D),pure hard compression,watch dog |
|
Image Sensor |
1/3" OV4689 low illumination CMOS |
|
Video Compression |
H.265/H.264,support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable |
|
Image output |
main stream: 4MP 2592*1520@15fps；3MP 2048*1536@25fps; sub-stream: 1280*720,704*576 @25fps |
|
Mini Illumination |
Color [email protected],black/white [email protected] |
|
Noise Reduction |
Support 2D/3D |
|
Wide dynamic |
Support digital |
|
Lens |
2.8-12MM / 6-22MM /5-50MM |
|
Anti-lightning |
Power anti-lightning，conform to GB/T17626.5 and IEC61000-4-5 |
|
POE |
Support |
|
Auto Iris |
/ |
|
Network Interface |
1*RJ45 10/100M |
|
ONVIF |
Support |
|
Mobile Monitoring |
iOS，Android |
|
IR LED |
30PCS IR LED |
|
IR Distance |
20M |
|
Operation Temperature |
-10℃~ 60℃ |
|
POE |
Support |
|
Power Supply |
DC12V |
|
Size |
95*145mm |
|
Weight |
1.2KG |
|
OEM Color |
White |
