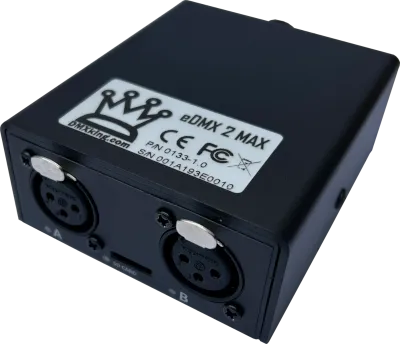

.. eDMX2 MAX ..

Flexible 2 port DMX512 node. Fully protected and isolated DMX512 IN/OUT independently configurable ports with advanced stream merging and built in show recording for standalone operation.

Main Features

Power over Ethernet 802.3af/at compliant. Alternative power via USB-C
Tough metal enclosure
USB DMX functionality in addition to Network ArtNet/sACN
Available with 3pin or 5pin Neutrik XLR socket options
2x DMX512 OUT or DMX512 IN isolated ports
Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
Merge Art-Net DMX input -> DMX output(s)
sACN Priority takeover for multi-tier controller arrangements
Recording and playback of shows to microSD card (not supplied) - See eDMX MAX Record / Playback manual
Real time clock with battery (not supplied) backup for intermittent power standalone playback
Art-Net I, II, 3 & 4 sACN/E1.31 protocol support including universe synchronization
Static or DHCP IPv4 networking
