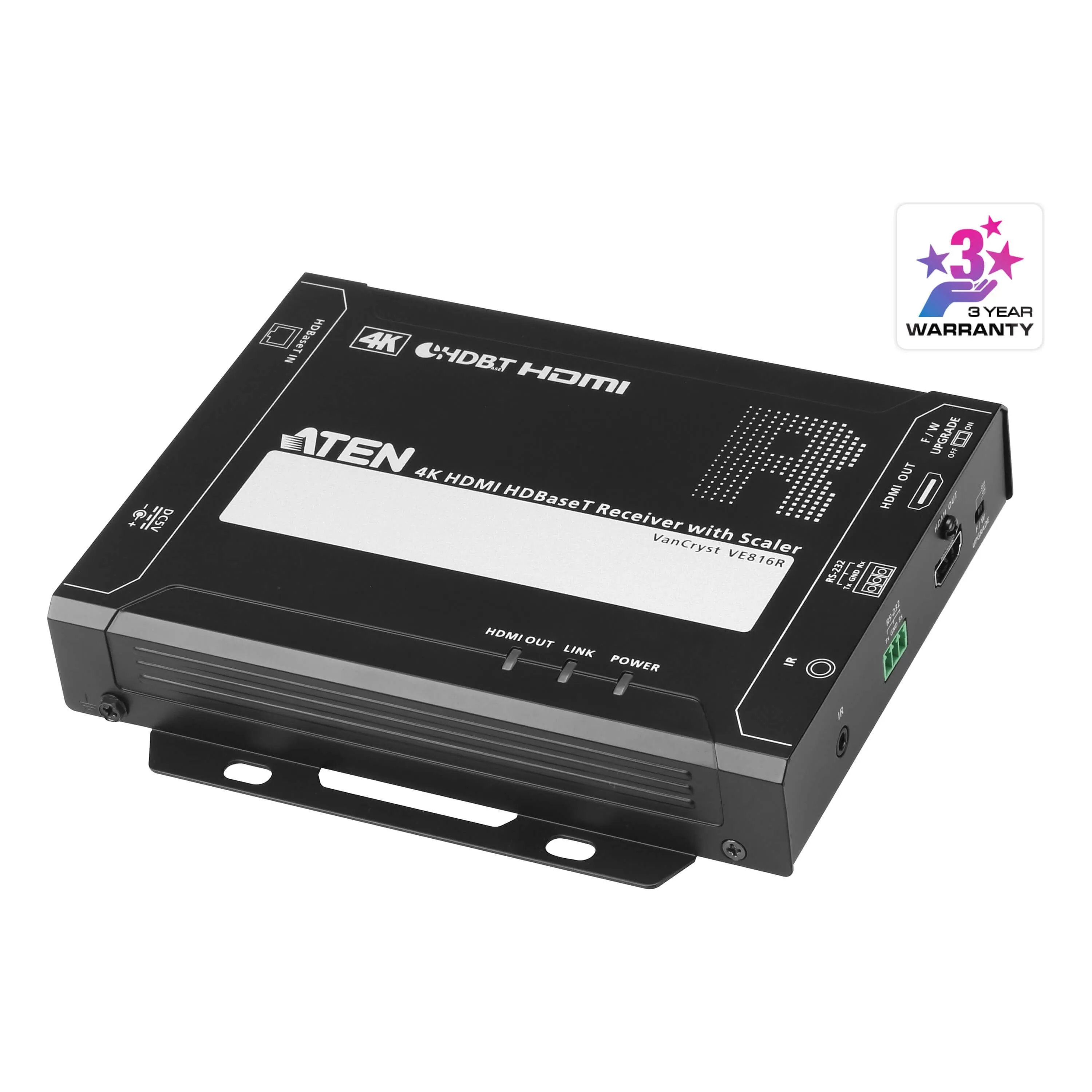

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.

Superior video quality:
• 4K up to 100 m
• 1080p up to 150 m
HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Remote Firmware upgrade
Built- in 8KV / 15 KV ESD protection
Plug-and-play
Rack-mountable

Video
Max. Data Rate 10.2 Gbps (3.40 Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, 4K, Deep Color)
HDCP2.2 Compatible
HDBaseT Compatible
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Connectors
Unit To Unit 1 x RJ-45 Female

Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

Physical Properties
Housing Metal
